Yamaha YBR 125 electrical system , wiring diagrams and components .







Yamaha YBR 125 workshop manual

Buy now





Yamaha YBR 125 parts in the USA







ive studied the internet and many books to find this info , but still i cannot get anywhere near close
to the level of information in the haynes workshop manual , buy one here .

if you know nothing about electrics like i didnt when i first started out , read this book
this will save you £100s in repair bills and has easy to follow instructions , and some excellent
tips and advice , literally makes electrical fault diagnosis simple .












buy it on amazon.uk here its well worth it imo



Yamaha YBR 125 wiring and electrical post .

battery - 12v 6ah

bulbs
headlight bulb - 35/35w
sidelight bulb - 5w
brake light bulb - 21/5w
plate light bulb - 5w
indicator bulb - 10w
clocks bulbs - 1.7w

15a fuse

yamaha ybr 125 charging system resistance figures

stator coil - 0.6~0.95(05~06) 2007-on (0.45~0.67)
regulated volts - 13.7~14.7
0.1ma max volt leakage

yamaha ybr fuel level sender unit resistance figures

full - 4~10 ohms
empty - 90~100 ohms

injection system resistance figures

crank position sensor  - 248 ~ 372 ohms @ 20 degrees C
engine temp sensor - @ 20 degree C~2.5-2.8 ohms - @ 100 degrees C~210-221 ohms
fast idle solenoid - 31.5~38.5 : 25 degrees C
intake air pressure sensor  output voltage - 3.75~4.25V
intake air temp sensor resistance - 2007-2009 2.4 to 2.9 k-ohms 2010 on 5.7 to 6.3 k-ohms
throttle position sensor input voltage 5v  output throttle closed 0.63-0.73v
tip over sensor voltage output - upright 0.4-1.4 ~ 65degree angle 3.7-4.4v


other electrical posts

Yamaha YBR 125 Generator , Alternator Stator  testing
Yamaha YBR 125 Change Rear Light / Brake Bulb
Yamaha YBR 125 Fuel pump repair
Yamaha YBR 125 Crank Position sensor testing
Yamaha YBR 125 Throttle position / intake air temp and pressure sensors
Yamaha YBR 125 Fast idle solenoid valve testing
Yamaha YBR 125 Injector testing
Yamaha YBR 125 Battery check - charging curcuit check
Yamaha YBR 125 blog , testing for no spark .
Yamaha YBR 125 Spark plug , type , gap , torque figures and how to read .
Yamaha YBR 125 flat battery , not charging , overcharging .
Yamaha YBR 125 Kokusan Denki motorcycle Electrical component descriptions
Yamaha YBR 125 fuel injection pump removal / refitting ( how to fit )
Yamaha YBR 125 , Yamaha FI diagnostics Tool Scanner Machine
Yamaha YBR 125 Fuel Injection System , FI diagnostics .
Yamaha YBR 125 Diagnostic Fault codes
Yamaha YBR 125 electronic ignition system
Yamaha YBR 125 Not sparking no spark diagnostics


yamaha ybr 125 wiring diagram
yamaha ybr 125  wiring diagram

yamaha ybr 125  wiring diagram

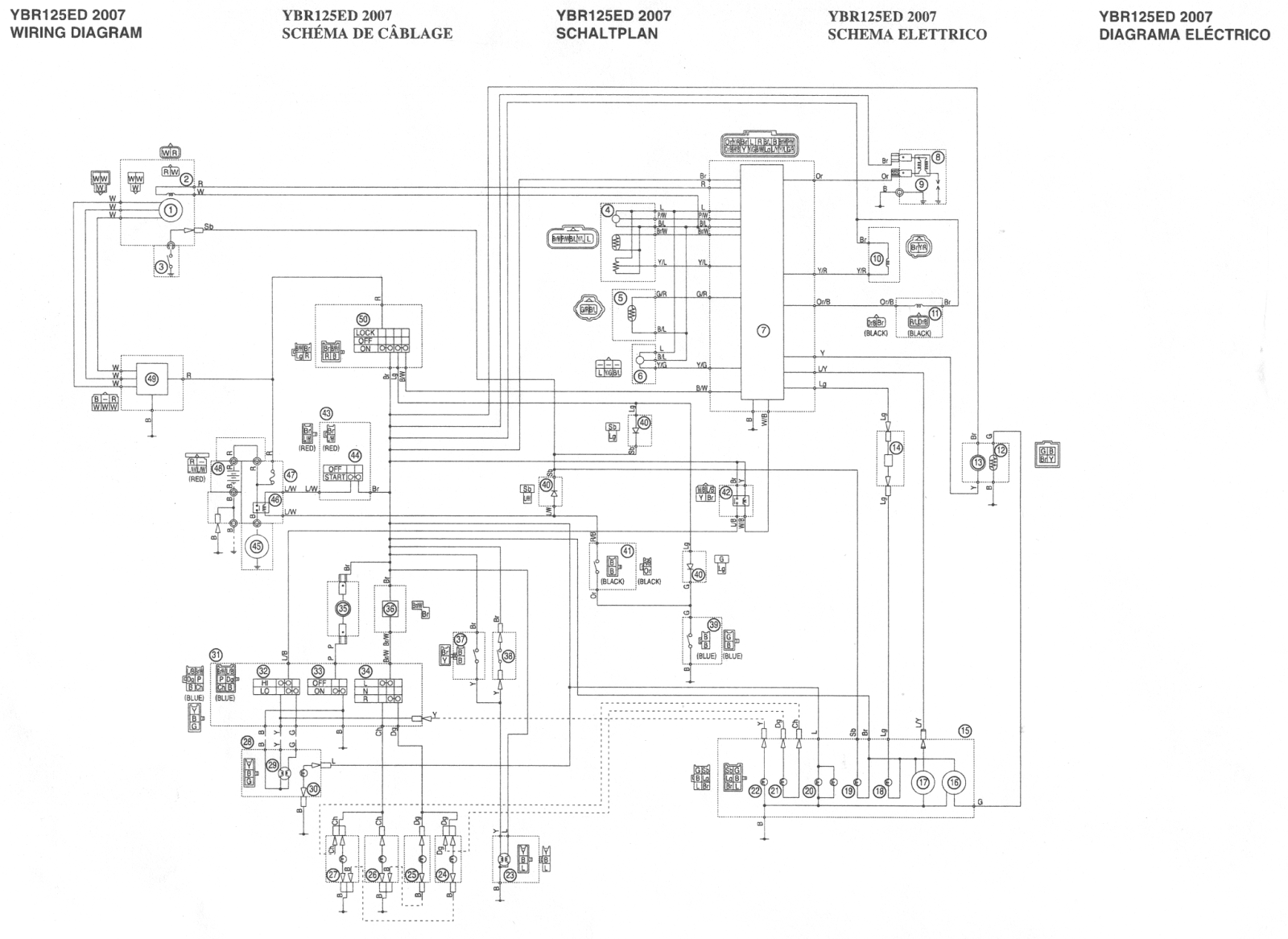

yamaha ybr 125 2007 wiring diagram
see this diagram larger here

and see below key to above diagram larger here






some photos off my latest Yamaha YBR 125 - ill update soon with id of parts and wires .


regulator


cdi unit 3d900


On the left hand side under battery cover you have the solonoid ( brass ) with fuse , if you have a failure to turn bike over it could be this , flasher unit ( black ) , and headlamp relay ( white )









                                                               front headlamp loom

=======================================================================
Test battery at the negative and positive terminals



If you have a voltage meter you can do some basic tests.
When the engine has been off for at least 1-2 hours with ignition key turned off,
100% Charged 12.60 to 12.8v
75% Charged 12.4v
50% Charged 12.1v
25% Charged 11.9v
0% Charged less than 11.8v

========================================================================



heres some excellent motorcycle electrical test videos .

                                                              Charging system testing

                                                          No spark situation testing




Must have electrical tool




12v circuit tester mines snap on but hard to find in uk
click here for any on ebay  now .








Kewtech multimeter , there are better and worse .

this has always done everything ive asked of it and would recommend them , you can get a lot cheaper .

see here on Ebay UK




Power Probe , dont use that often but an excellent tool when needed

mine is a cheaper version this one here in ebay uk

you can get Snap On Powerprobe which is excellent if you can afford it it see them here on ebay uk




My ratchet electrical connector crimps , i paid a lot of money for these when i  worked as an electrician but still paying for themselves
now 10 yrs later

cant find this model but heres some on ebay < a lot cheaper these days




thats about it for interesting electrical tools i own , got any recommendations send a comment below .
