Safety First: Engine rebuilding involves handling heavy components, flammable fluids, and pressurized parts. Always work in a well-ventilated area, wear eye protection, and ensure the motorcycle is securely supported on a center stand or lift. If you are unsure about torque settings or tolerances, consult a professional mechanic, as incorrect assembly can lead to engine failure or loss of control.
The Yamaha YBR 125 engine remains one of the most reliable and straightforward single-cylinder units to overhaul. Whether you are refreshing a high-mileage commuter or fixing a top-end rattle, this 2026 update covers the essential steps, modern parts availability, and critical torque specs.
1. Essential Rebuild Inventory
Before you crack the cases, ensure you have the following parts ready. Buying these as kits on eBay is often more cost-effective than buying individual gaskets:
Complete YBR 125 Cylinder & Piston Kits – The fastest way to restore compression.Full Engine Gasket Sets – Never reuse old gaskets, especially the head gasket.Digital Torque Wrenches – Vital for the small 8mm and 10mm bolts on the head.
2. Critical Torque Specifications
Precision is key to preventing oil leaks and snapped studs. Use these confirmed 2026 values:
| Component | Torque Setting | Notes |
| Cylinder Head Bolts (M8) | 22 Nm | Tighten in a criss-cross pattern. |
| Camshaft Sprocket Bolt | 20 Nm | Use a drop of blue thread locker. |
| Cylinder Base Nuts | 10 Nm | Do not over-tighten; these snap easily. |
| Tappet Covers | 17.5 Nm | Ensure the O-ring is seated correctly. |
| Oil Drain Bolt | 20 Nm | Always use a new copper crush washer. |
3. The "Hidden" Step: The Centrifugal Filter
The YBR 125 does not have a standard screw-on oil filter. One of the most common causes of rebuild failure is neglecting the internal cleaning:
Remove the right-hand crankcase cover.
Locate the centrifugal filter (the circular housing on the crank).
Remove the three screws and clean out the accumulated "sludge." If this is full, your engine will starve of oil regardless of how many new parts you install.
4. Valve Clearances (Cold Engine)
Setting these correctly is the difference between a quiet engine and a "tappy" one.
Inlet: 0.08 mm – 0.12 mm
Exhaust: 0.10 mm – 0.14 mm
5. Break-In Procedure
To ensure your new piston rings seat perfectly against the cylinder wall:
The First 20 Miles: Use 10W-40 mineral oil. Avoid high RPMs but do not "baby" the engine—moderate acceleration helps the rings expand and seal.
Heat Cycles: Let the engine reach operating temperature on the stand, then let it cool completely. Do this three times before your first road test.
Oil Flush: Change the oil after the first 200 miles to remove any assembly lube or microscopic metal shavings from the new components.
Summary Checklist
[ ] Cleaned centrifugal oil filter.
[ ] Replaced valve stem seals (stops blue smoke).
[ ] Checked cam chain tensioner for "click" engagement.
[ ] Verified piston ring "End Gap" in the cylinder.
other posts of interest
Yamaha YBR 125 Clutch - rebuild
Yamaha YBR 125 Engine rebuild
Four stroke single
123.7cc
54mm bore
54mm stroke
10 to 1 comp
170 psi compression
Air cooled
All service settings for valves , head , piston , rings clutch etc are in the Haynes workshop manual id get one if you attempting to rebuild your engine it will be invaluable BUY HERE on Ebay UK
Check out complete engines for YBR 125 on Ebay UK here
 |

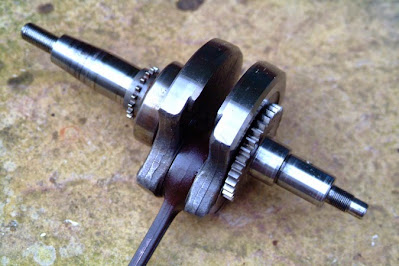

| Yamaha YBR 125 engine rebuild |
 |
| Yamaha YBR 125 engine rebuild |
 |
| yamaha YBR 125 engine rebuild |
 |
Yamaha YBR 125 engine rebuild |
