Yamaha YBR 125 clutch removal ( engine repairs )






Yamaha YBR 125 clutch removal ( engine repairs )




Yamaha YBR 125 clutch removal ( engine repairs )

undo all bolts

Yamaha YBR 125 clutch removal ( engine repairs )

gently tap side cover loose at the little tabs provided for this

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

undo clutch springs

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

take clutch apart , remember the way they go or follow my photos

Yamaha YBR 125 clutch removal ( engine repairs )


Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )
bend tab back
Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

        undo main bolt , you will need clutch holding tool
                                   or a boa gripper tool
Yamaha YBR 125 clutch removal ( engine repairs )
watch out for this ball bearing
Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

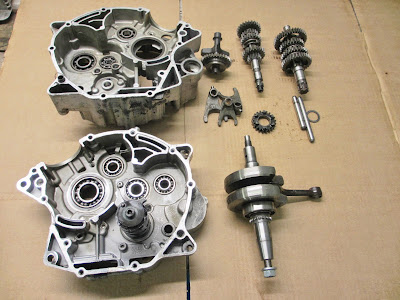

below photos are uploaded to go towards the complete engine strip down post when ready  .

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )

Yamaha YBR 125 clutch removal ( engine repairs )







see more Yamaha YBR 125 blog posts
