Yamaha YBR 125 blog , removing and fitting the exhaust







Yamaha YBR 125 blog ,  removing and fitting the exhaust




Yamaha YBR 125 workshop manual







Yamaha YBR 125 blog removing the exhaust

is quite an easy job or can be if the allen head bolts do not snap off , which happens on the YBR 125
at lease 50% of the times i have done this job for first time on a bike .

its literally only 3 bolts , 2 x size 5 allen headed bolts in the exhaust manifold and a 12mm nut/bolt at the rear of exhaust connected to the foot pegs.

newer model Yamaha YBR 125 have the EGR pipe fitted to the centre this is just a matter of a clip
and pulling the pipe off .



Yamaha YBR 125 blog ,  removing and fitting the exhaust

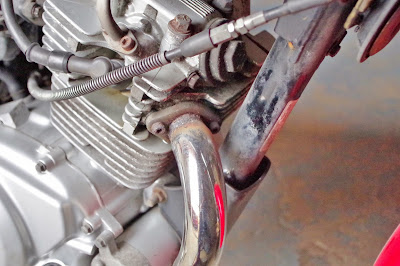

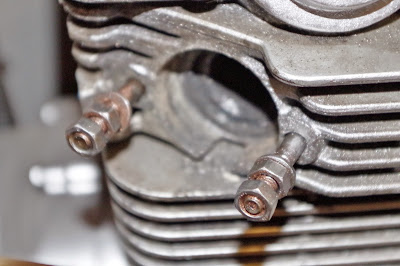

2 x size 5 allens heads

Yamaha YBR 125 blog ,  removing and fitting the exhaust

12mm nut and bolt

Yamaha YBR 125 blog ,  removing and fitting the exhaust

Yamaha YBR 125 blog ,  removing and fitting the exhaust

Yamaha YBR 125 blog removing the exhaust

Yamaha YBR 125 blog ,  removing and fitting the exhaust



when you undo the 2 allen headed bolts be careful as they can break , i usually turn very slowly adding lots of wd40 , move the bolt backwards and forwards a bit to try to break it free and loosen it .

but sometime its just cannot be helped , you have to snap them off .

drill the holes and tap and thread . ill do a post on this one day .

Yamaha YBR 125 blog ,  removing and fitting the exhaust





Yamaha YBR 125 blog ,  removing and fitting the exhaust











thanks for reading the Yamaha Owners blog , if you would like to support us you can by  buying your newYamaha YBR 125 off ebay uk here or buying  parts for your Yamaha YBR 125 from ebay uk
