Yamaha YBR 125 Engine removal






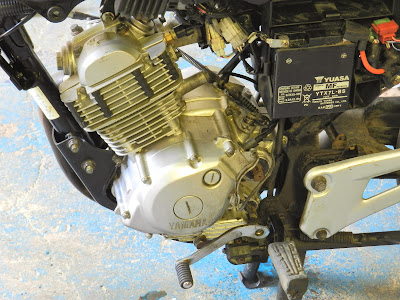

This engine has a rumble , not sure of exact problem yet hence why its being removed , ill do an engine strip down post on this engine . This is how i took it out not so professional , i have not got a ramp any more had to sell it last year saving for one now so it makes it easier if you have one , also it might be better to do it slightly different we all have different methods and most of the time i do thing slightly different myself .

easy job , minimal tool ( no fairing which is great !! ) , the only problems i see is mixing wires up i have had a few bikes bought to me with fault codes for fault on injector and all its been is

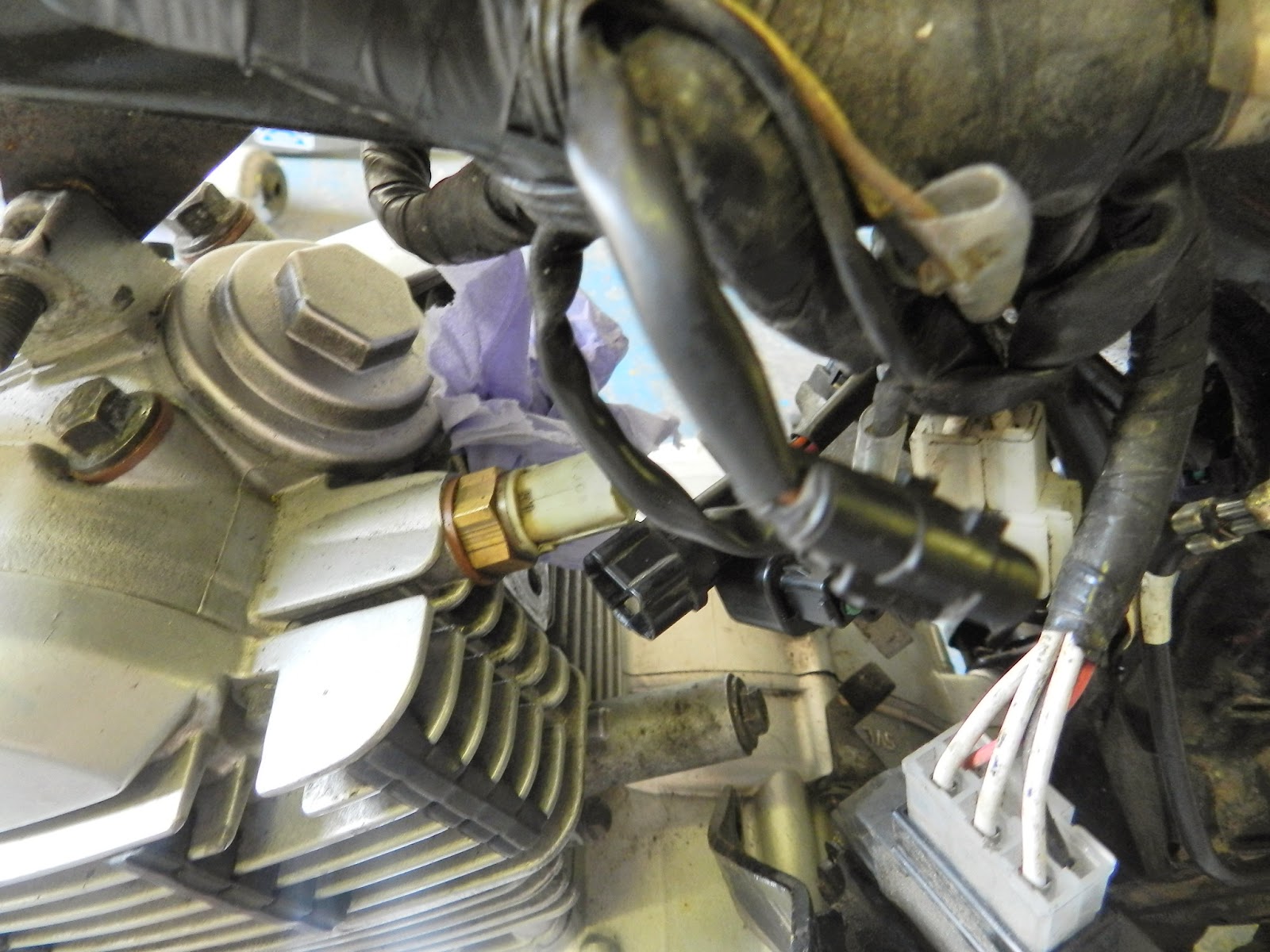

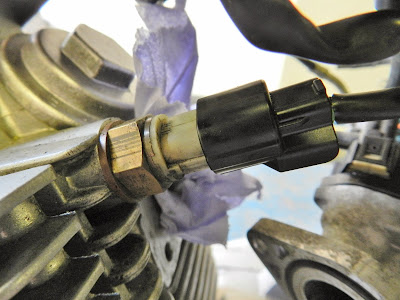

mixed up wiring , so be careful if you remove wiring to note which goes to which . injector wiring connectors are both black !!




Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

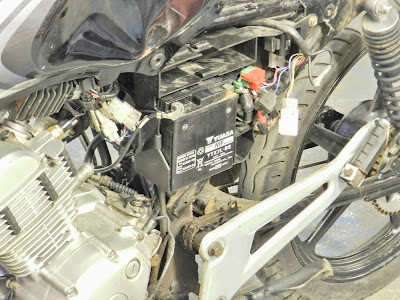

                                          Disconnect the battery

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

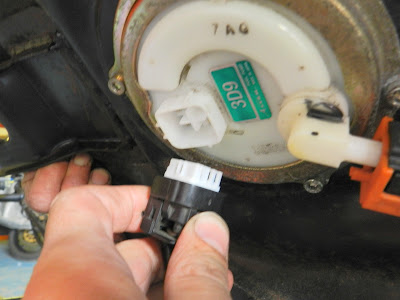

unplug fuel hoses and electrical connectors to remove tank

Yamaha YBR 125 Engine removal

undo exhaust bolts , very careful as these can shear
off and cause problems !! if they are tight work them out
forwards and backward slowly .

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Drop oil if not already done so

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

slacken and remove clutch lever cable at lever
and engine

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

undo all wiring

Yamaha YBR 125 Engine removal

undo front engine mount bolts

Buy Yamaha YBR 125 engine parts here

Yamaha YBR 125 Engine removal

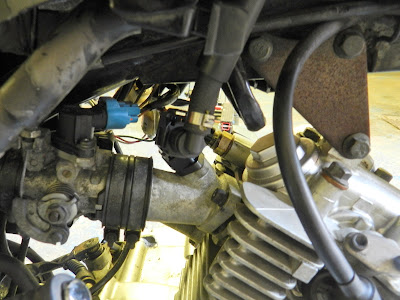

undo airfilter and inlet manifold and move out of way remove altogether is even better


Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

rag inside the inlet to prevent items entering

Yamaha YBR 125 Engine removal

undo the remaining engine mount bolts and wiring connectors

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

dont forget to remove starter lead cable

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

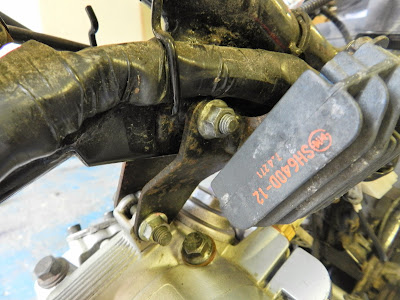

upper engine mount

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

Yamaha YBR 125 Engine removal

thats about it easy , lower engine to floor job done
